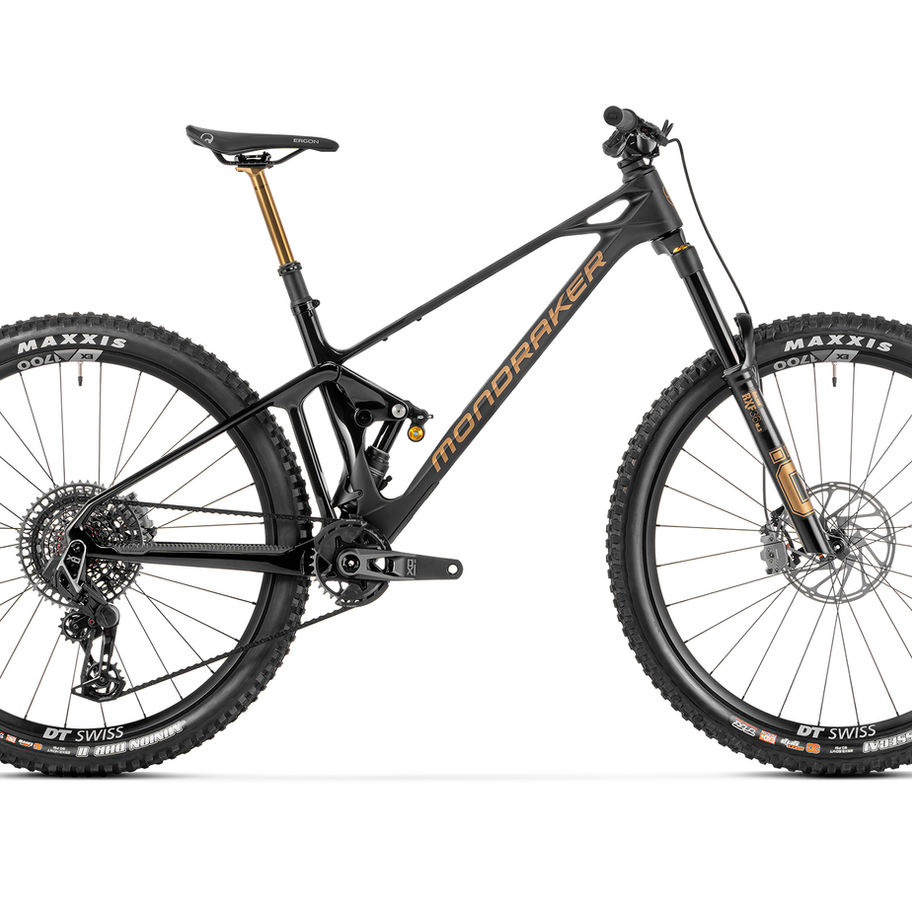

Mondraker Foxy Carbon RR Superblack

Price

£7,999.00

if you’re a rider who enjoys going up, but what you really love is the ride back down and that feeling of flow as you rip along the sweetest trails in your area then you’re one of us, and one of our enduro bikes was made for you. We’d bet that you love pushing your limits as far as you can, and when you get to the bottom you can’t help but tell your mates about that berm you railed or that jump that you’d been wanting to send forever and finally launched... then without a doubt you’ve got Mondraker DNA built-in. And we love that. That's why our enduro bikes have FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and some of them even have MIND; technology that lets you set up your suspension like a pro mechanic but without having to be one. And best of all, whichever model you choose, you’ll feel like the luckiest rider on the planet.

Size

Quantity

PRODUCT INFO

  • Frame

    Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

    Sizes

    S: 375mm / M: 415mm / L: 445mm / XL: 500mm

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings

    C10 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

    Fork

    Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    Headset

    Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

    Stem

    Onoff S9 30mm 0°, Full CNC, 31.8mm barbore

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    Seatpost

    Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm

    Saddle

    Ergon Enduro SPS20

    Front brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

  • Rims

    DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes

    Spokes

    DT Competition, straightpull

    Front hub

    DT 350, Boost 15x110mm, IS 6 bolts

    Rear hub

    DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead

    Crankset

    Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, CL 55

    Rings

    32T, CNC-machined alloy, T-Type

    Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm, wide

    Chain

    Sram X0 Eagle T-Type, 12s, Powerlock

    Rear derrailleur

    Sram X0 Eagle AXS T-Type,12s

    Shift levers

    Sram Eagle AXS Pod, 12s

    Casette

    Sram XS-1295, 10-52T, T-Type 12s

    Weight

    14,3 kg
