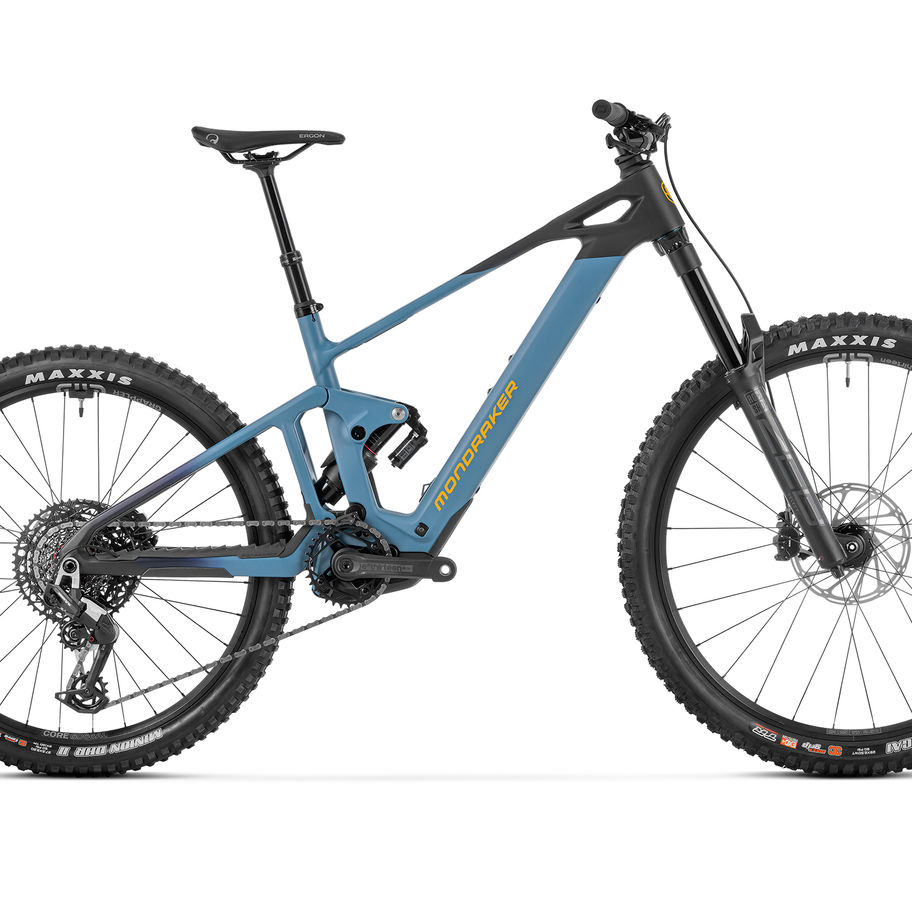

Mondraker Dune R Denim Blue
£6,799.00
DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20Kg, including an integrated 400Wh battery, it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.
Quantity
Out of stock
PRODUCT INFO
-
Frame
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C34 compression, R23 rebound, 2 tokens
Fork
RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm
Saddle
Ergon Enduro SPS20
Front brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
-
Spokes
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 90 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
Weight
20,3 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
